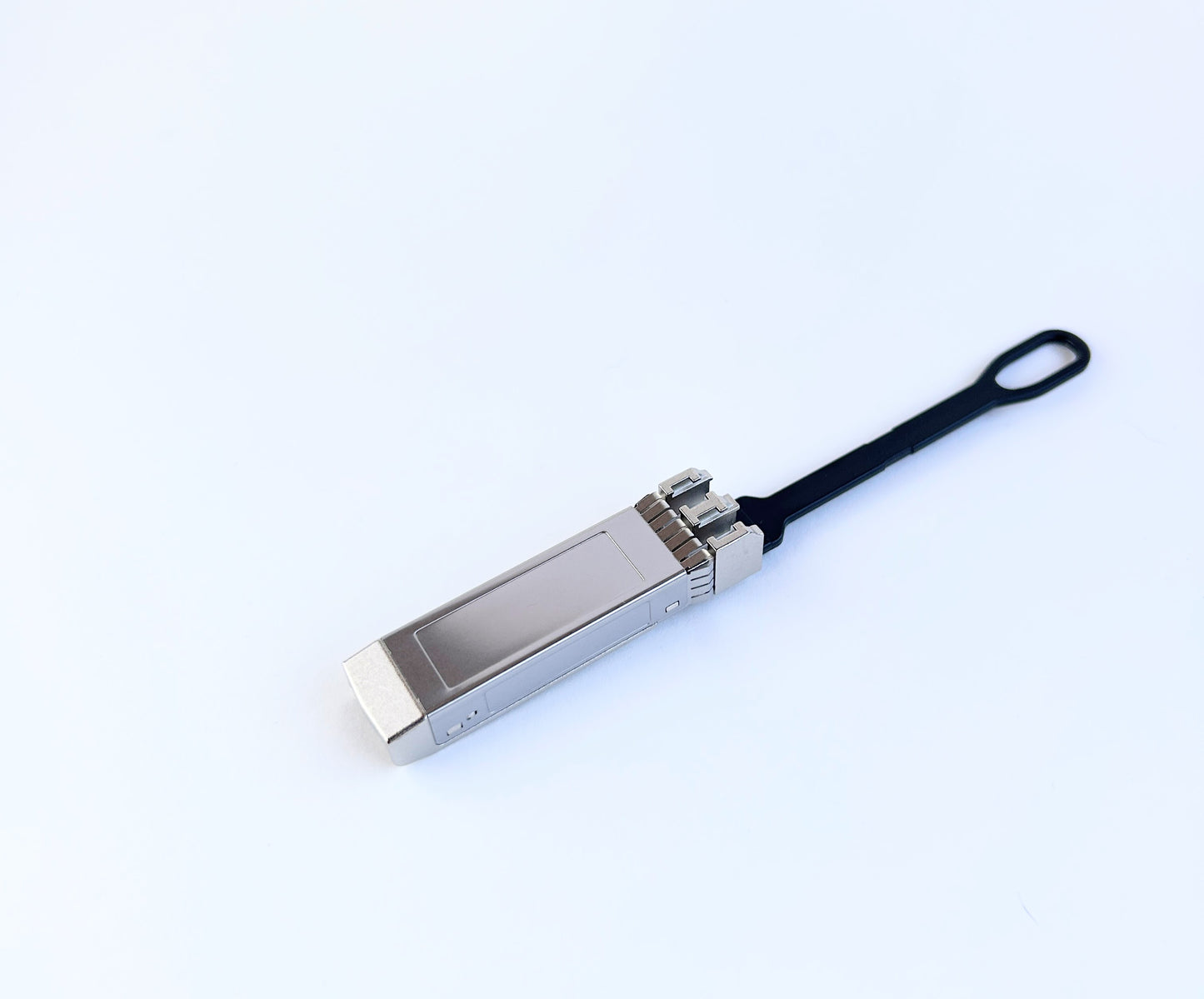

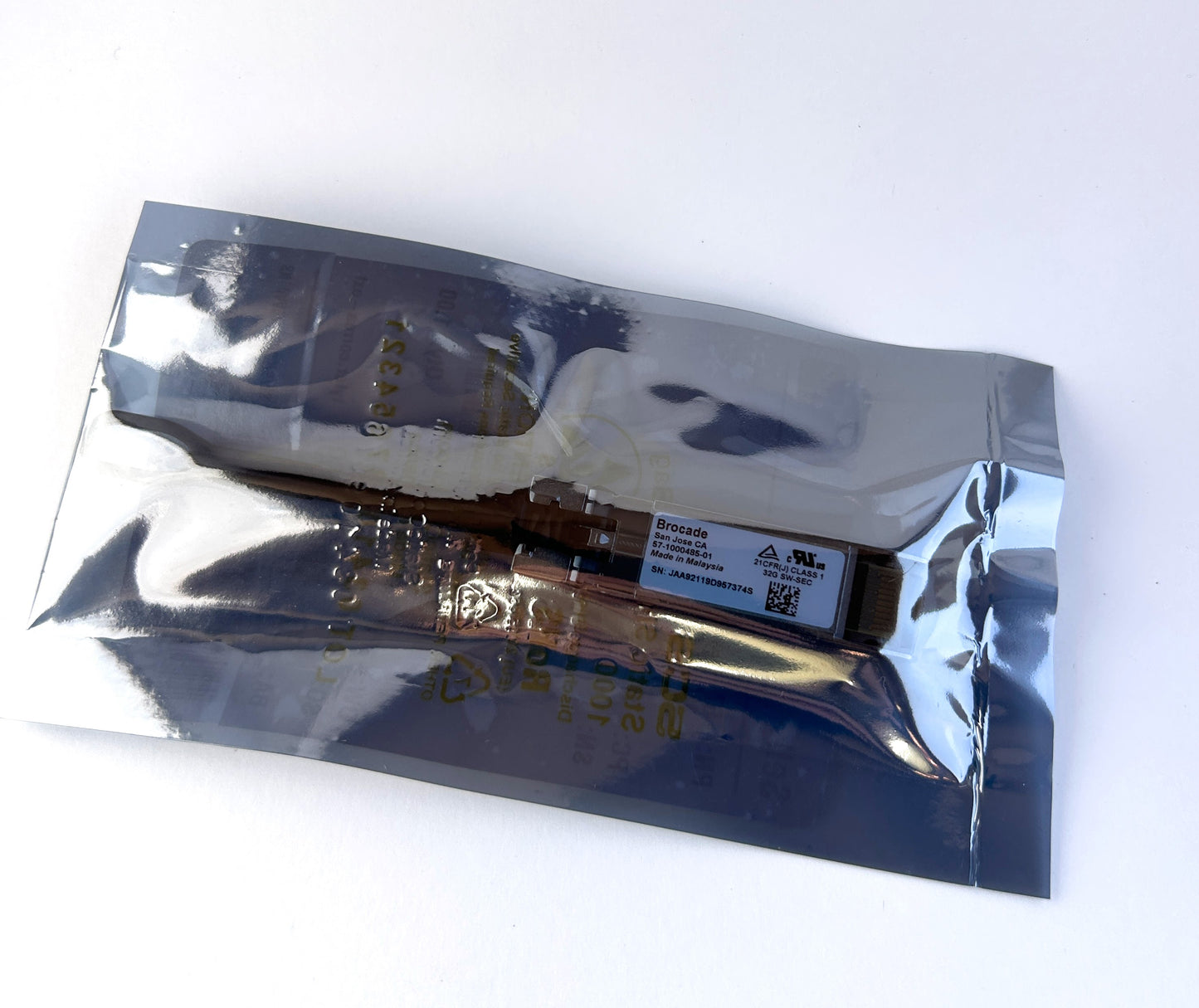

57-1000485-01 / XBR-000412 Brocade (Broadcom) 32Gbps SFP+ Transceiver, Refurbished
Warranty: Lifetime
Condition: Refurbished
The Brocade (Broadcom) 57-1000485-01 with alternate part number XBR-000412 is a genuine, hot-swappable 32Gbps Short Wavelength (SWL) SFP+ optical transceiver designed for high-performance Fibre Channel storage networks. It supports auto-negotiation for 8/16/32 Gbps speeds and provides reliable connectivity in Brocade Gen 7 and Gen 8 switches and directors. This module features digital diagnostics monitoring (DOM) for real-time performance tracking and is optimized for multimode fiber deployments.
Key Features & Specifications
- Part Number: 57-1000485-01 (Ordering: XBR-000412 1-pack / XBR-000413 8-pack)
- Data Rates: 32 Gbps (28.05 Gb/s), auto-sensing 8/16/32 Gbps Fibre Channel
- Wavelength: 850 nm (840-860 nm range)
- Connector: Duplex LC
- Fiber Type: Multimode Fiber (MMF)
-
Maximum Distance:
- 100 meters on OM4/OM5 MMF (32 Gbps)
- 70 meters on OM3 MMF (32 Gbps)
- 125 meters on OM4/OM5 MMF (16 Gbps)
- Longer distances at lower speeds (see full table below)
- Form Factor: SFP+ (hot-pluggable)
- Digital Diagnostics: Yes (DOM/DDM) – monitors temperature, voltage, bias current, Tx/Rx power
- Operating Temperature: 0°C to 70°C (commercial)
- Power Consumption: ≤ 1.0W
- Compliance: FC-PI-6, SFF-8472, RoHS, Class 1 laser safety
Distance Table by Fiber Type
| Fiber Type | 8 Gbps | 16 Gbps | 32 Gbps |
|---|---|---|---|
| OM2 (50 μm) | 50m | 35m | 20m |
| OM3 (50 μm) | 150m | 100m | 70m |
| OM4/OM5 (50 μm) | 190m | 125m | 100m |
Compatibility Fully compatible with Brocade Gen 7 (e.g., G720) and Gen 8 Fibre Channel platforms, including switches like the G610, G620, G630, and extension switches (SX6, 7840, etc.). Engineered for end-to-end Brocade fabric reliability.
Condition Options Available as new, refurbished, or pulled from working systems – ideal for data center upgrades, SAN extensions, or spares.
This transceiver delivers enterprise-grade performance for demanding storage environments. Contact for bulk pricing or compatibility verification!
